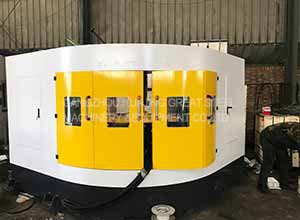

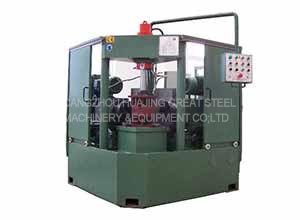

Elbow Automatic Beveling Machine



Equipment performance



1 the beveling mainframe use(GB707-1988)Q235B



steel plate welding to fit the working pressure .



2 the milling power head is use the high level standard



power head make



3 main hydraulic station control press material oil cylinder fix ,



keep pressure and loose .



4 oil tank is Q235—4mm steel plate welding combine 0.7M*0.6M*0.6M



square oil tank box one piece the cubage is 0.28m3, working media



L-HM46 anti-wear hydraulic oil.



5 hydraulic station motor :1set



6 gear pump 1set



Category:

Description

1.Elbow beveling machine has the features of unique design, compact structure, beautiful look and convenience to operate.
It is an ideal equipment for chamfering metal right-angel elbow end.
The products processed by the machine are comply with relevant elbow beveling standard.
2.This machine drives strongly, cuts quickly and works efficiently.
It contains novel- structured floating cutter support, well and truly oriented workpiece clamp and qualified excellent hydraulic feed lock device to ensure normal and quick forward/ backward movement of the workpiece on the slipway,
It could beveling at both ends to confirm the correct 90 and 180 degree.


3.Equipment performance
3.1 the beveling mainframe use(GB707-1988)Q235B steel plate welding to fit the working pressure .
3.2 the milling power head is use the high level standard power head make
3.3 main hydraulic station control press material oil cylinder fix ,keep pressure and loose .
3.4 oil tank is Q235—4mm steel plate welding combine 0.7M*0.6M*0.6M square oil tank box one piece the cubage is 0.28m3, working media L-HM46 anti-wear hydraulic oil.
3.5 hydraulic station motor :1set
3.6 gear pump 1set
4.CNC system
Cabinet body adopt JJT sheet make ,control electrical appliance(Star delta start)Domestic high level quality components are adopted,PLC control with automatic , point move ,manual three operate way,working cost low ,all the button all pit on the control cabinet ,easy to control .
5.fixture
Use Q235 steel plate welding ,nicety process.
