Pipe Hot Expanding Equipment



Remarks:



1.the thrust force of hydro-cylinder



shall be calculated as two hydro-cylinder;



design max pressure is 21Mpa;



using pressure is 0-18Mpa.



2.the data is for reference only.



Description

Hydraulic two-step pushing pipe expanding machine HJ-II

Performance
The equipment is a specialized device for petroleum,chemical industry,electric power,oil and gas pipeline and

other fittings ;it was designed and manufactured by our company ;it synthesized many years of improvement

and technical requirements in fittings industry. It mainly chooses seamless and welded pipes as raw material

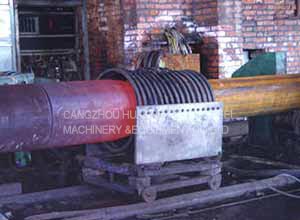

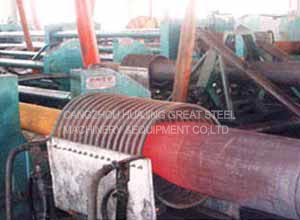

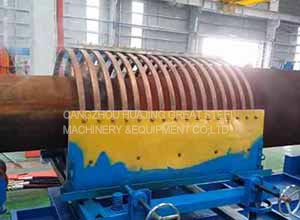

and makes use of hydraulic pushing-method equipment mating intermediate frequency heating system to realize

the production procedure of hot expanding pipe diameter. The products adapt carbon and alloy steel pipes expanding

from original small-diameter pipes to big-diameter pipes.the equipment possesses logical design, reliable working,

convenient operation,automatically feeding system for relicving labor intensity;main unit _adapts hydraulic rotation

easy to realize the rapid shifting between stepless speed governing speed –reverse with working process,and can

easily adjust thrust.it can run stably with little noise,the circuit board of intermediate frequency power adapts advanced

technology;starting circuit with constant power digital sweep frequency can run smoothly and reliably with low failure rate.


Major technology parameters

Paramete\ model

HJ-II-219

HJ-II-325

HJ-II-426

HJ-II-530

Max diameter expanding to

219

325

426

530

Inner diameter of hydro-cylinde(mm)

160

200

220

250

Thrust force of  hydro-cylinde(T)

84

130

160

206

Using thrust force(T)

67

104

128

165

Working adfvance speed(mm/min)

2500

1400

1600

1200

Return stroke(mm/min)

5000

3900

3400

3300

Remarks:
1.the thrust force of hydro-cylinder shall be calculated as two hydro-cylinder;design max pressure is 21Mpa;

using pressure is 0-18Mpa.
2.the data is for reference only.

Paramete\ model

HJ-II-630

HJ-II-720

HJ-II-820

HJ-II-920

HJ-II-1020

Max diameter expanding to

630

720

820

920

1020

Inner diameter of hydro-cylinde(mm)

280

300

320

340

360

Thrust force of  hydro-cylinde(T)

258

296

337

380

420

Using thrust force(T)

206

232

270

320

360

Working adfvance speed(mm/min)

1100

1000

950

900

800

Return stroke(mm/min)

2800

2700

2200

2000

1700

3.products can be customized according to requirement
